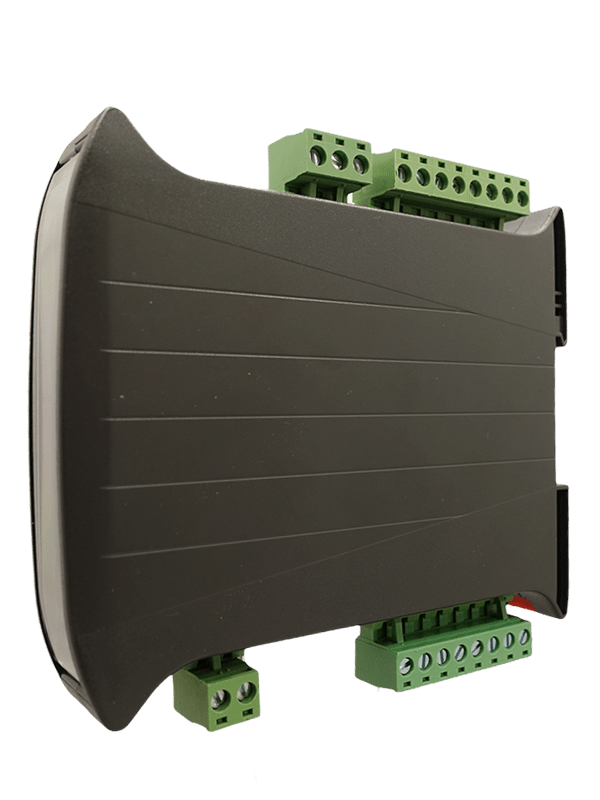

RTU-RTD4

Dell Edge Gateway Compatible Industrial IoT RS485 Modbus Digital Analogue IO Modules

Feature Set

  • PT1000 RTD Sensor x 4 Channels
  • Each channel selectable as 2/3/4wire sensor configuration (via internal “Push-On” jumper link settings)
  • Software Modbus registers for
  • -
    Current reading
  • -
    Average Channel reading (software selectable as over 4/8/16/32 readings)
  • -
    Max channel reading with user definable threshold value
  • -
    Min channel reading with user definable threshold value
  • -
    RTD Sensor Fault Indicator
  • -
    50/60Hz “Mains Hum” line filter setting
  • -
    Short-Long Average configuration setting
  • -
    Channel Mode configuration setting
  • -
  • -
    Baud Rate
  • 2-Wire RS485 Interface
  • Fast Modbus poll rates <100ms
  • Modbus Address selection via external “Push-On” jumper link setting
  • Factory Reset Via “Push-On” link setting
  • Integrated Watchdog and Power “Brown-Out” detect and correct
  • Compatible with most popular Edge Gateway devices including Dell 3001/5000/5100 Edge Gateway devices

Product Support

SOFTWARE SUPPORT

Open Source reference software code available to make implementation easy

Take me to GITHUB

DOCUMENTATION

Full product documentation ready to download

DOWNLOAD MANUAL

PURCHASE NOW

Available to purchase today, click to build your complete IO solution
