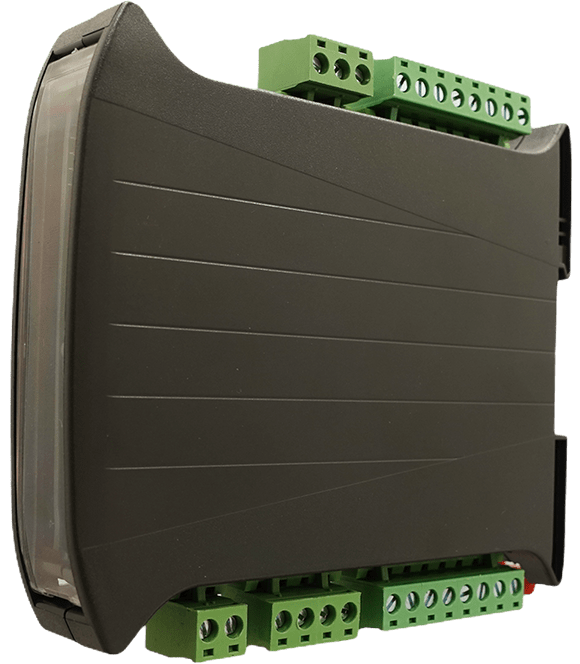

RTU-DI8

Dell Edge Gateway Compatible Modbus RS485 IO Module Digital Input Pulse Counter

Feature Set

  • 8 Channel Opto-Isolated Digital Inputs
  • Fast Opto-Coupler design capable of reading high speed pulses
  • Wide Channel Input Voltage range (5-48V)
  • Three modes of operation
  • -
    High/Low Level Mode
  • -
    Pulse Width Measurement Mode
  • -
    Pulse Count Mode
  • Software Modbus registers for
  • -
    Channel High/Low Level State Mode
  • -
    Channel 32bit Pulse Count totalizer (value also stored in Non-Volatile FRAM) Mode
  • -
    Channel 32bit Pulse Count Offset Value
  • -
    Current Channel Pulse Width Measurement (PWM) value
  • -
    PWM “Olympic Average” channel reading
  • -
    PWM Max channel reading
  • -
    PWM Min channel reading
  • -
    Pulse count de-bounce period (default 10ms) configuration setting
  • -
    PWM Average short/long configuration setting (selectable as over 6 or 10 readings)
  • -
    Channel Mode configuration setting
  • -
    Baud Rate
  • 2-Wire RS485 Interface
  • Fast Modbus poll rates <100ms
  • Modbus Address selection via external “Push-On” jumper link setting
  • Factory Reset Via “Push-On” link setting
  • Integrated Watchdog and Power “Brown-Out” detect and correct
  • 5V TTL Trigger Output Pin for Ultrasonic Sensors
  • Regulated 5V Power supply pins for powering external sensors
  • Optional DIN Rail mountable breakout board for Maxbotix ultrasonic sensors
  • Compatible with most popular Edge Gateway devices including Dell 3001/5000/5100 Edge Gateway devices

Product Support

SOFTWARE SUPPORT

Open Source reference software code available to make implementation easy

Take me to GITHUB

DOCUMENTATION

Full product documentation ready to download

DOWNLOAD MANUAL

PURCHASE NOW

Available to purchase today, click to build your complete IO solution
